Air Dryer -20°C, IDG50-F03

D1314

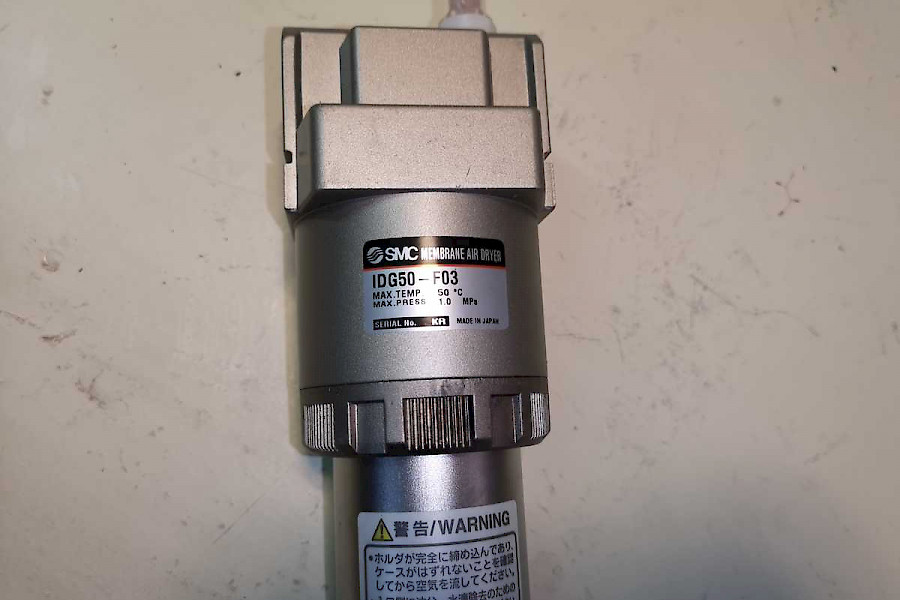

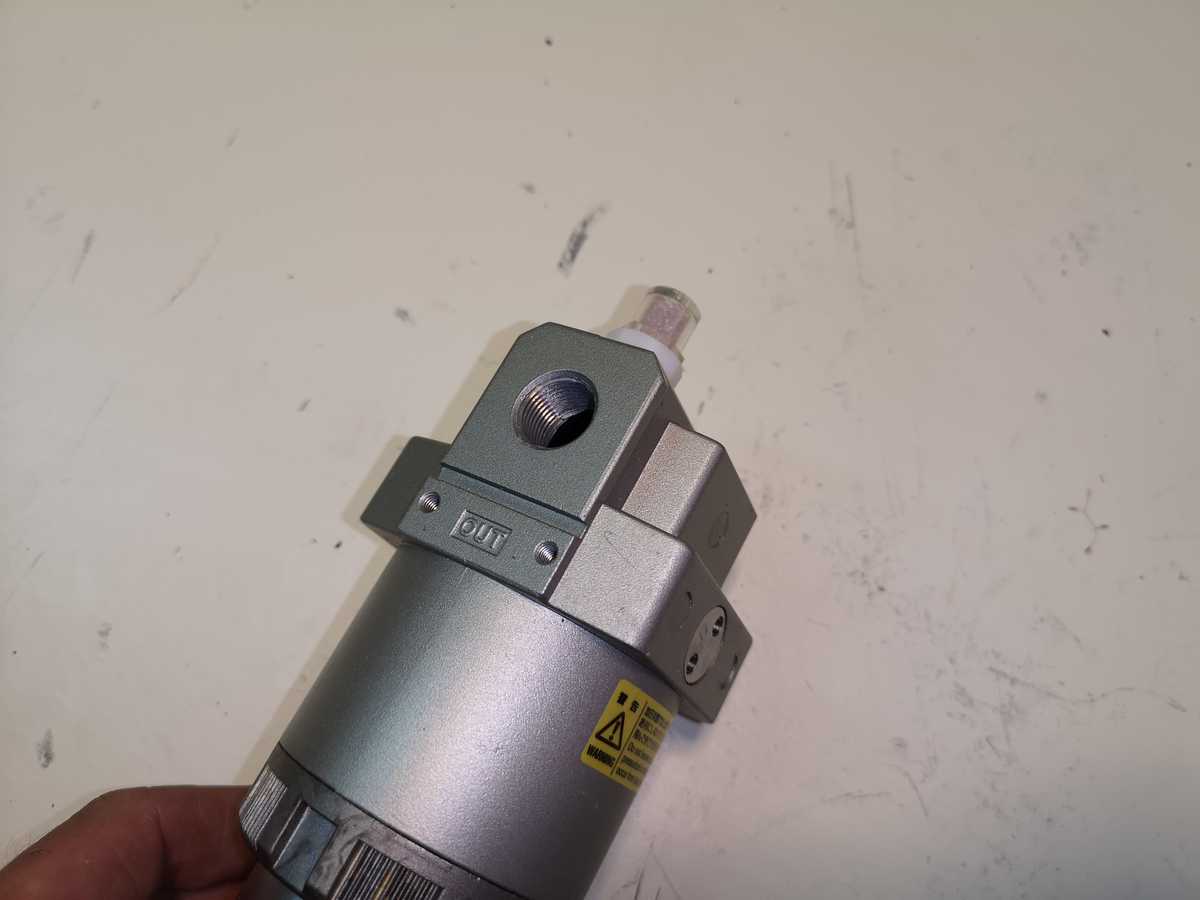

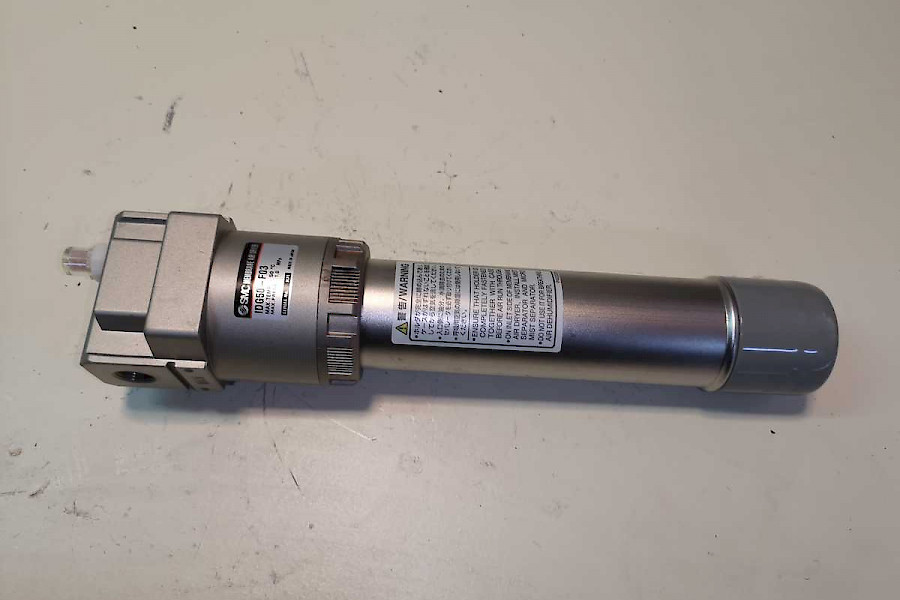

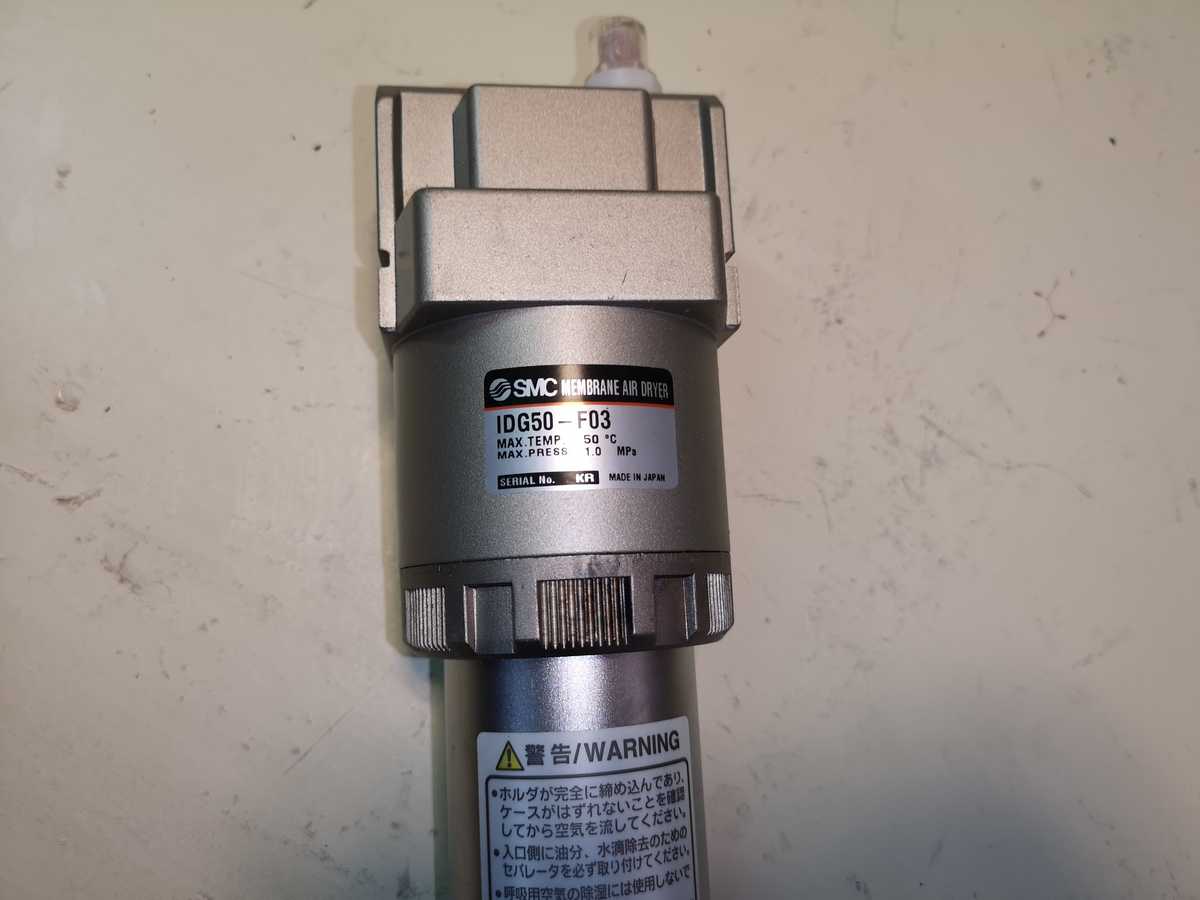

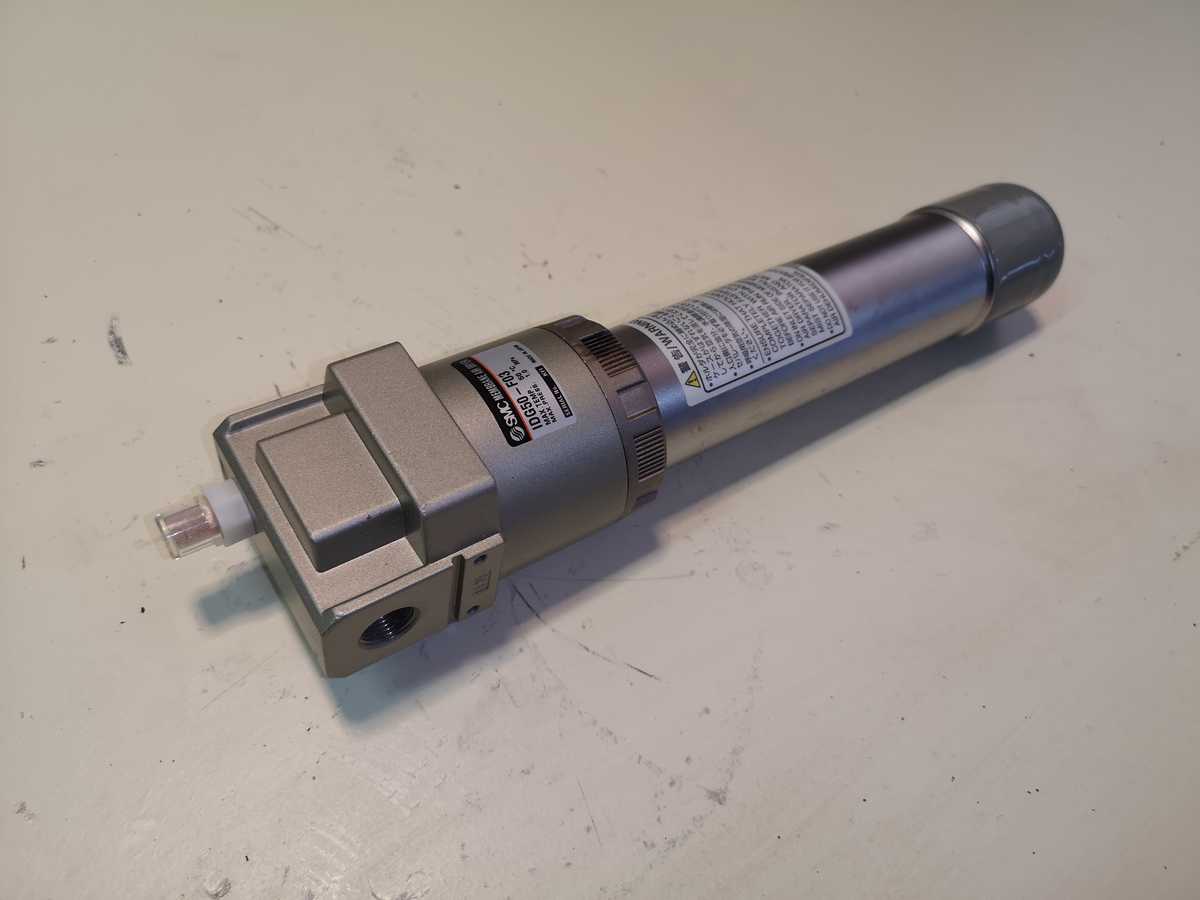

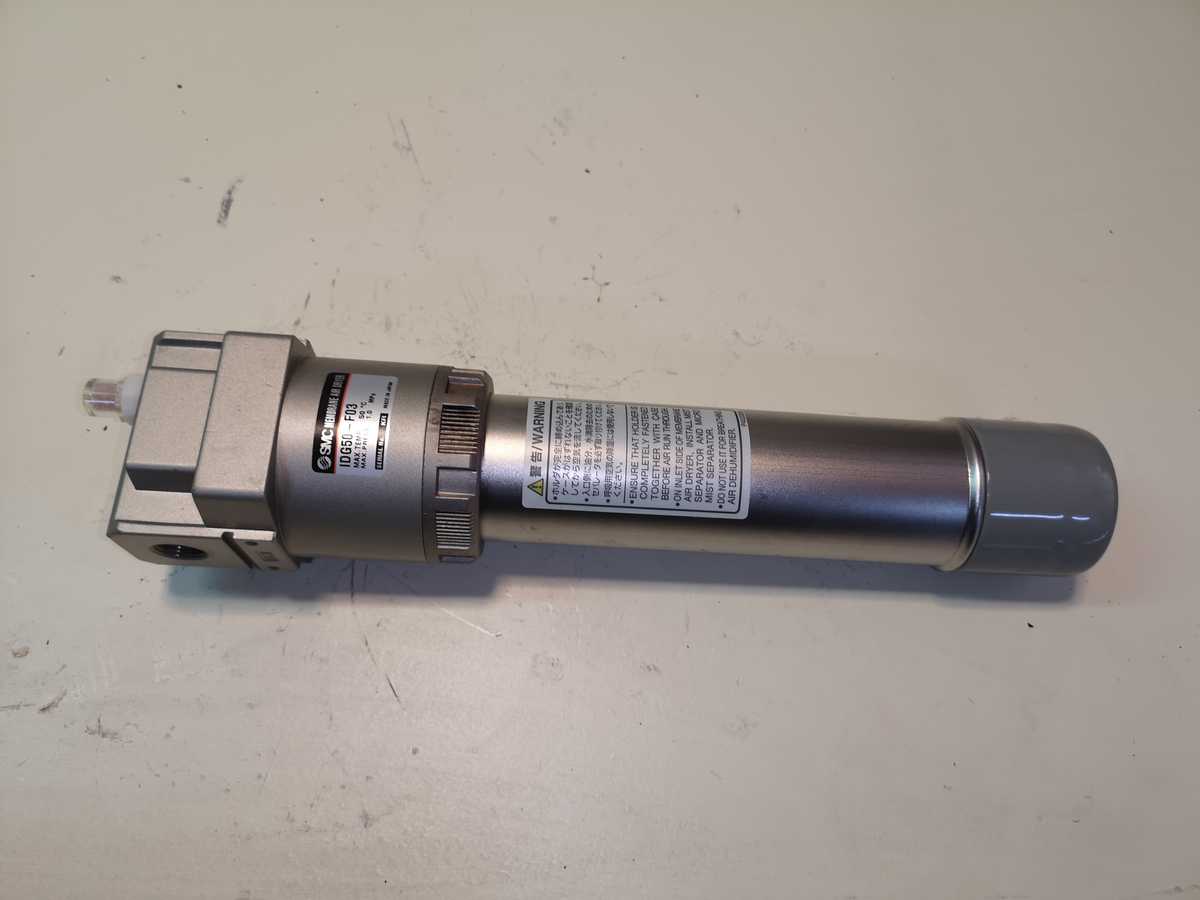

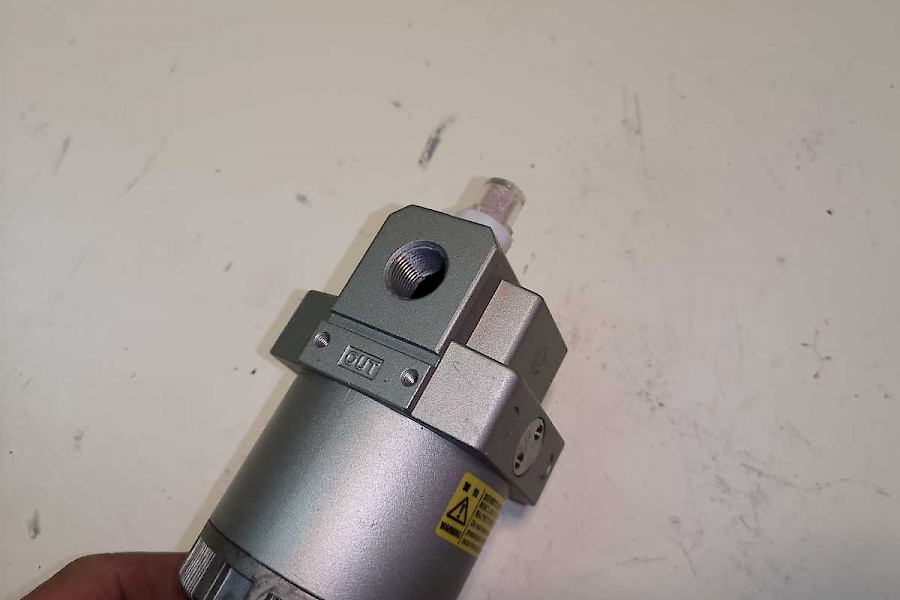

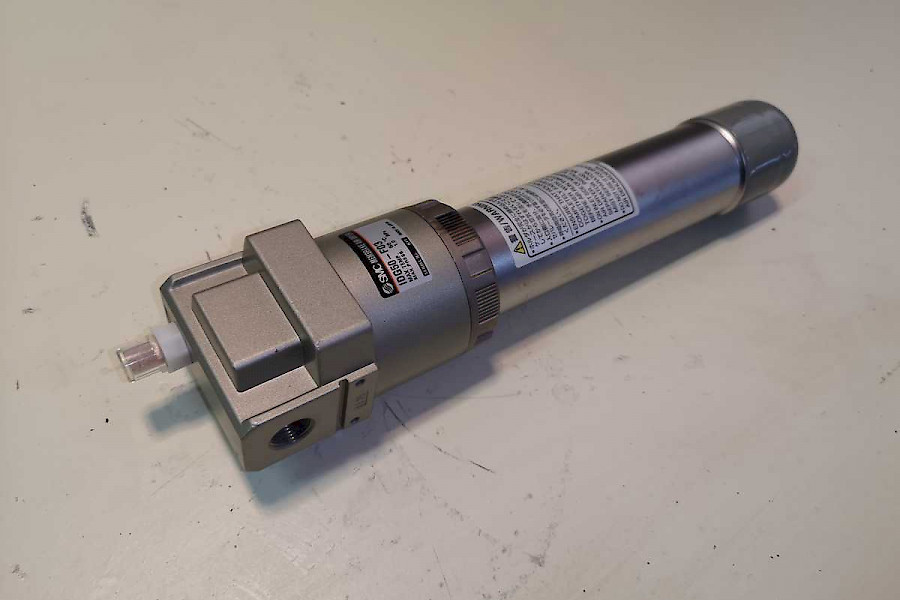

SMC Membrane Compressed Air Dryer -20°C, IDG50-F03

Manufacturer Series IDG

Type Membrane

Inlet Port Size G 3/8

Outlet Port Size G 3/8

Dew Point -20°C

Typical Flow Rate 125 (Purge) L/min, 500 (Outlet) L/min

Maximum Ambient Operating Temperature +50°C

Minimum Ambient Operating Temperature -5°C

Minimum Process Operating Temperature -5°C

Ambient Operating Temperature Range -5 → +50°C

Minimum Operating Inlet Pressure 0.3MPa

Maximum Operating Inlet Pressure 1MPa

Maximum Process Operating Temperature +50°C

Process Operating Temperature Range -5 → +50°C

Inlet Port Thread Standard G

Ompaino - 1 kg / kpl
Saatavuus: 2kpl
