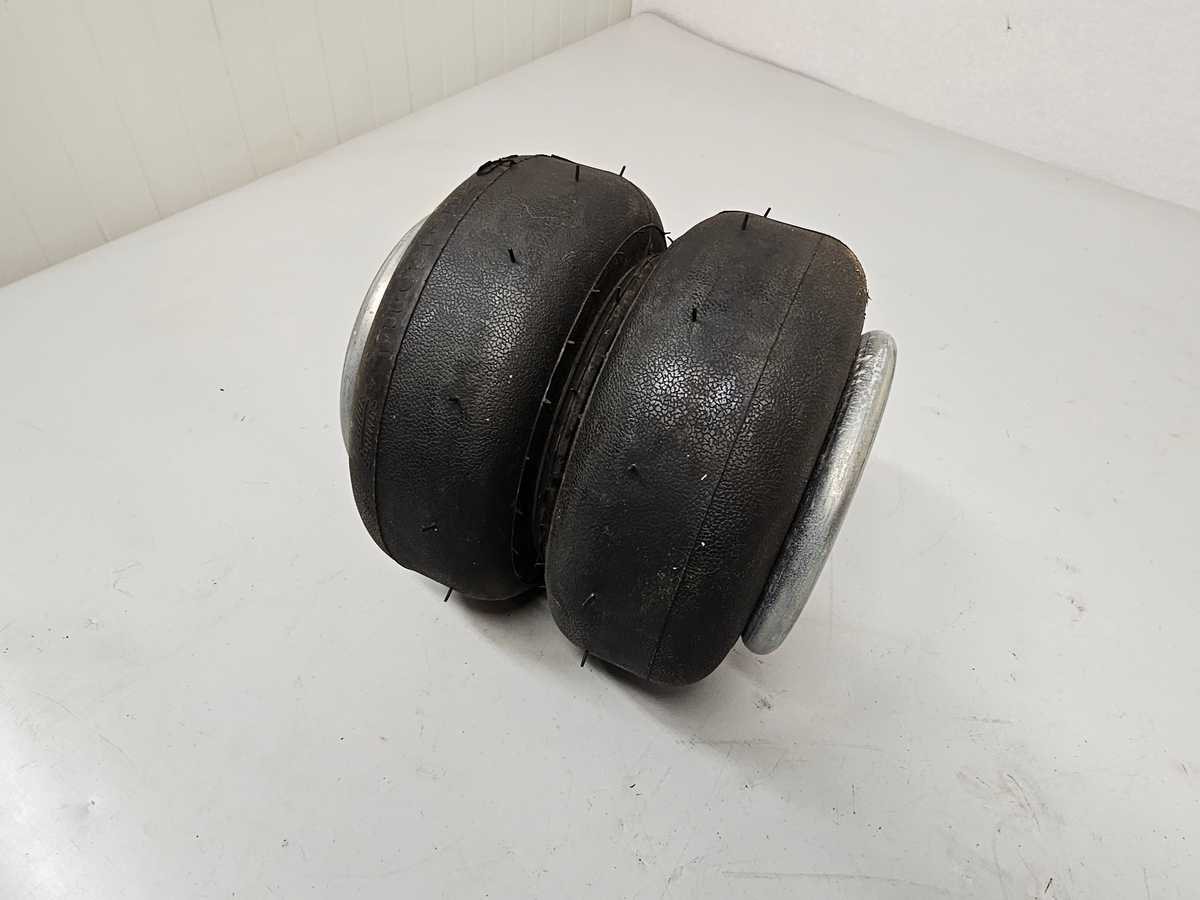

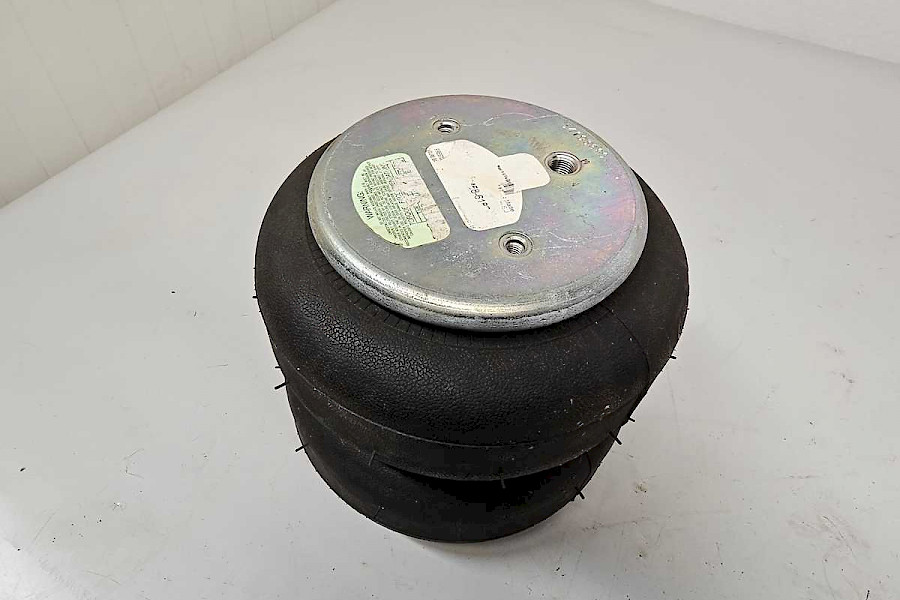

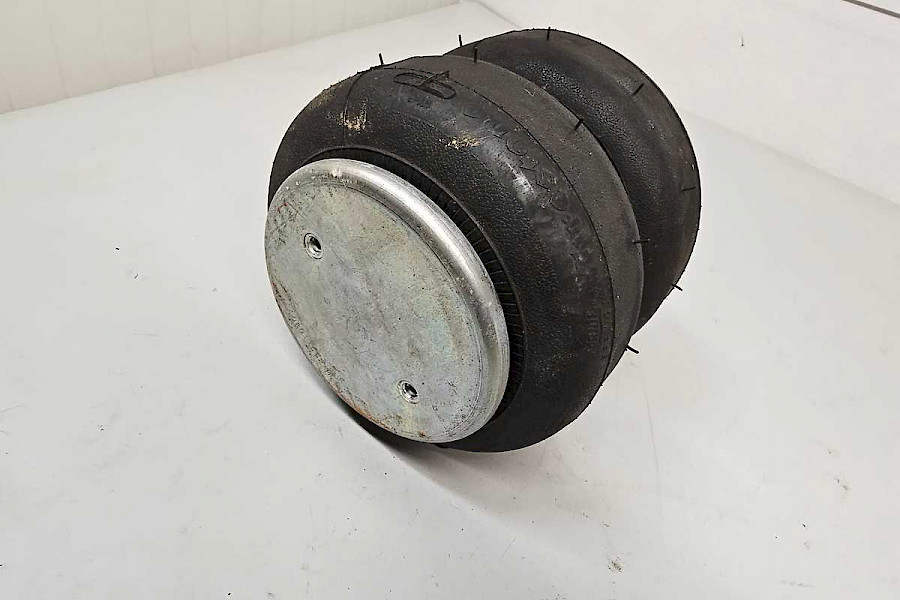

Firestone Nostopalje / Ilmajousi Kaksoiskupera W01-M58-6183

Sijainti

c0821

Tuotetiedot

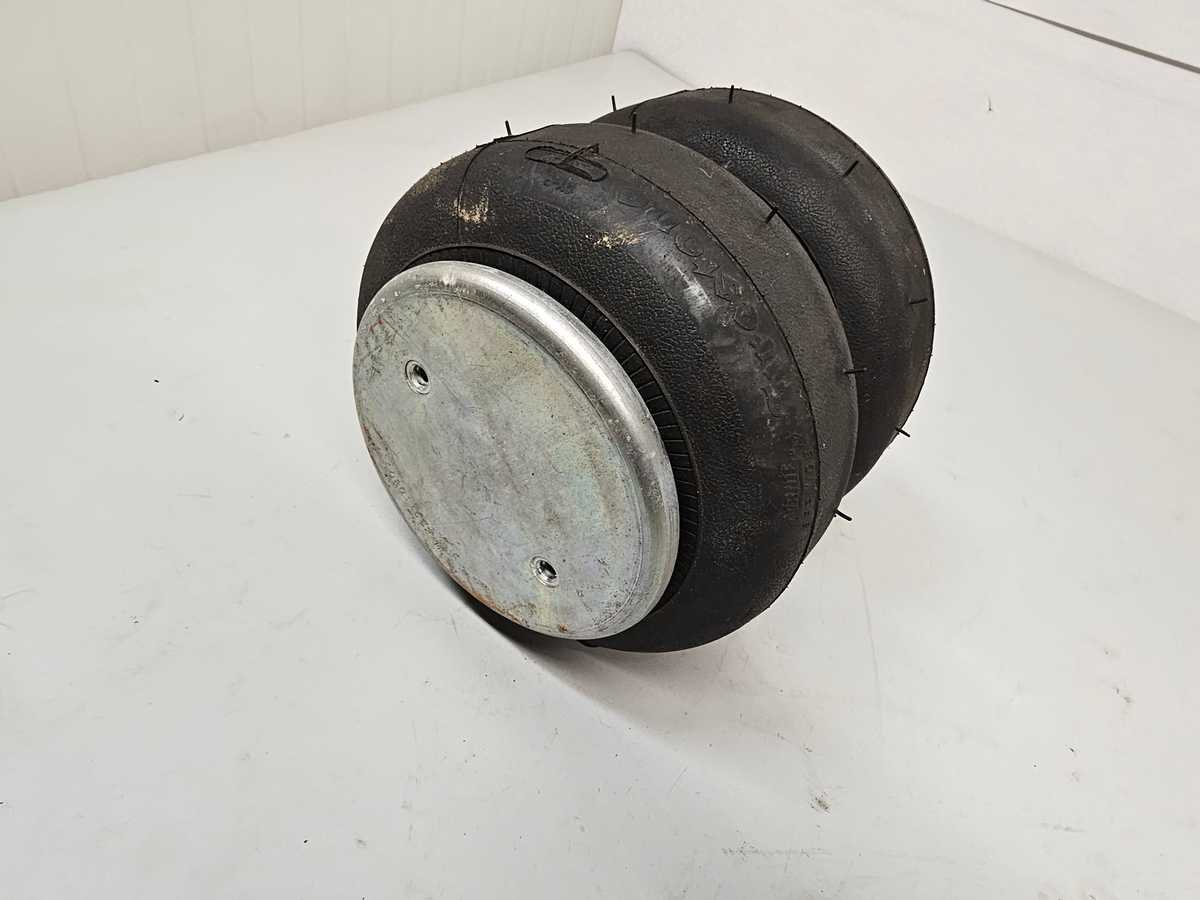

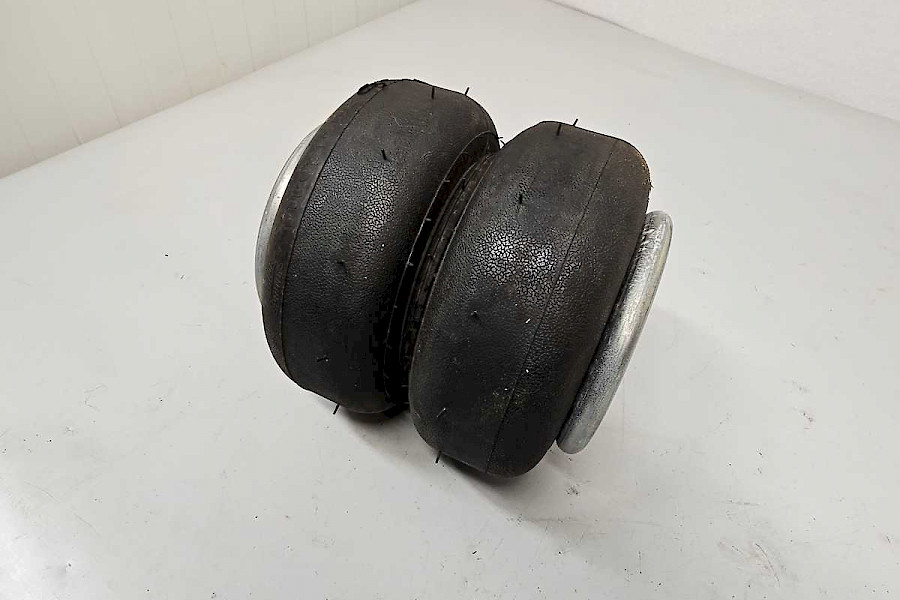

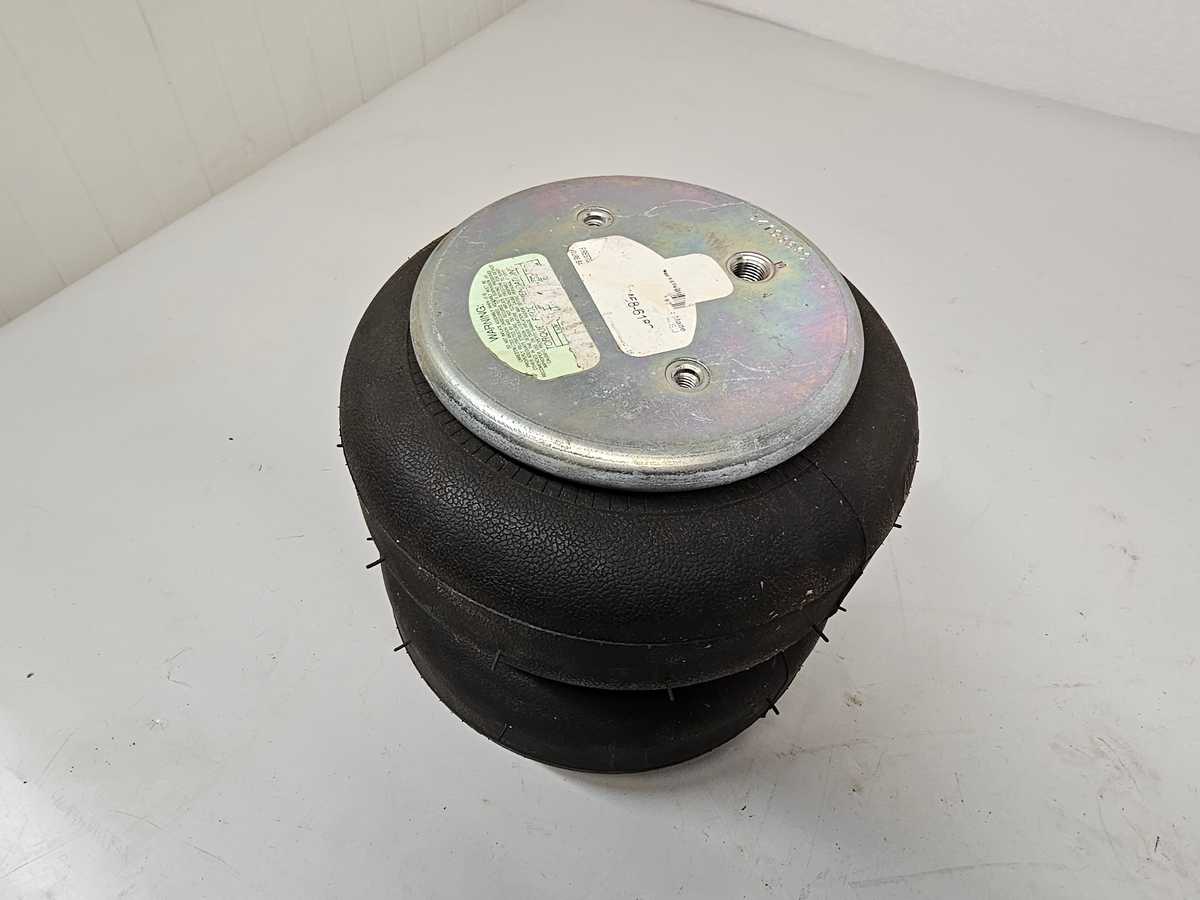

Firestone Nostopalje / Ilmajousi Kaksoiskupera W01-M58-6183

Hinta per kpl

Paino: 3,6 kg / kpl
Saatavuus: 2

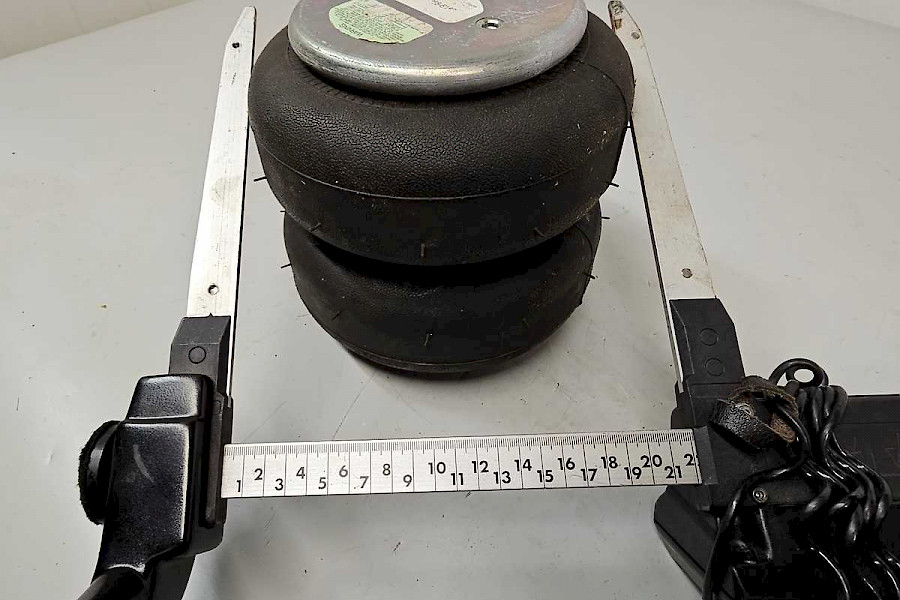

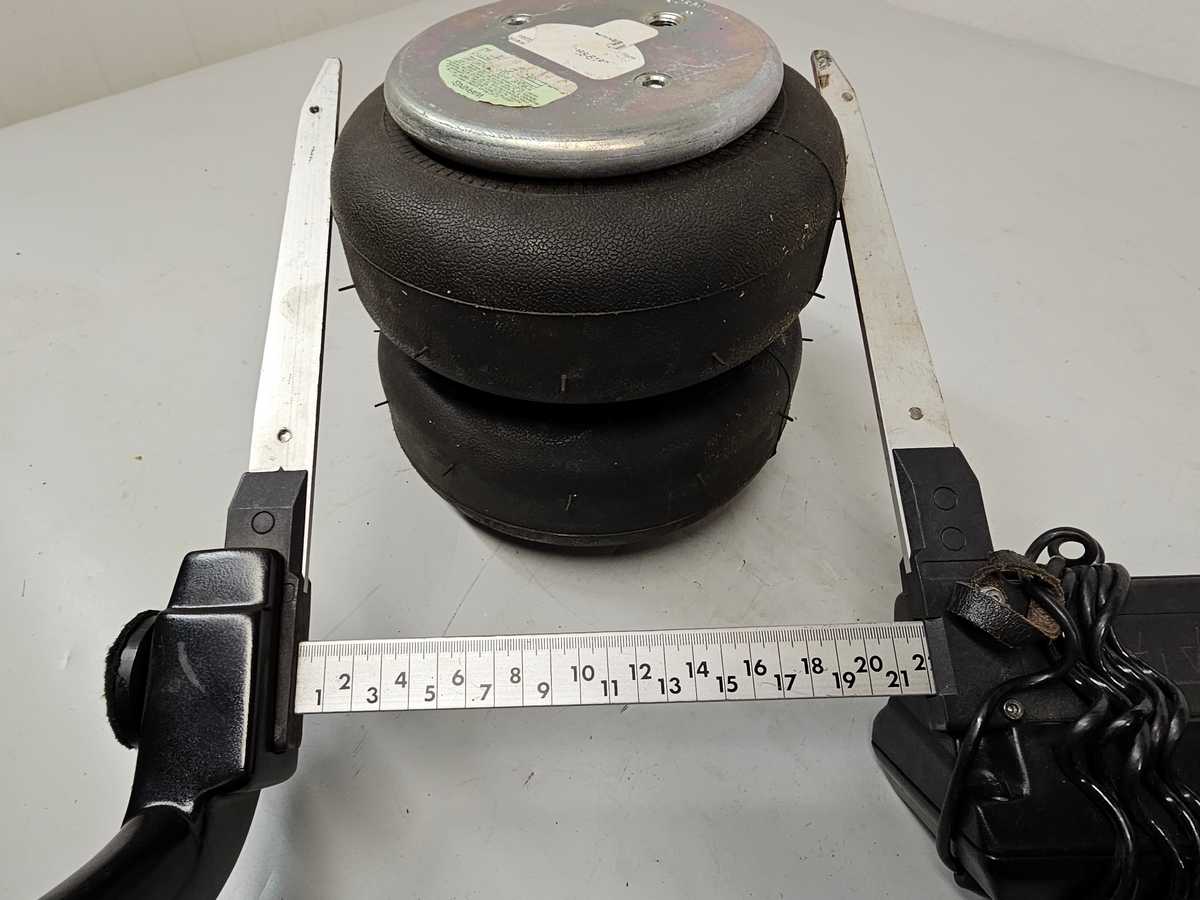

Maximum Diameter @ 7 Bar (mm)	264

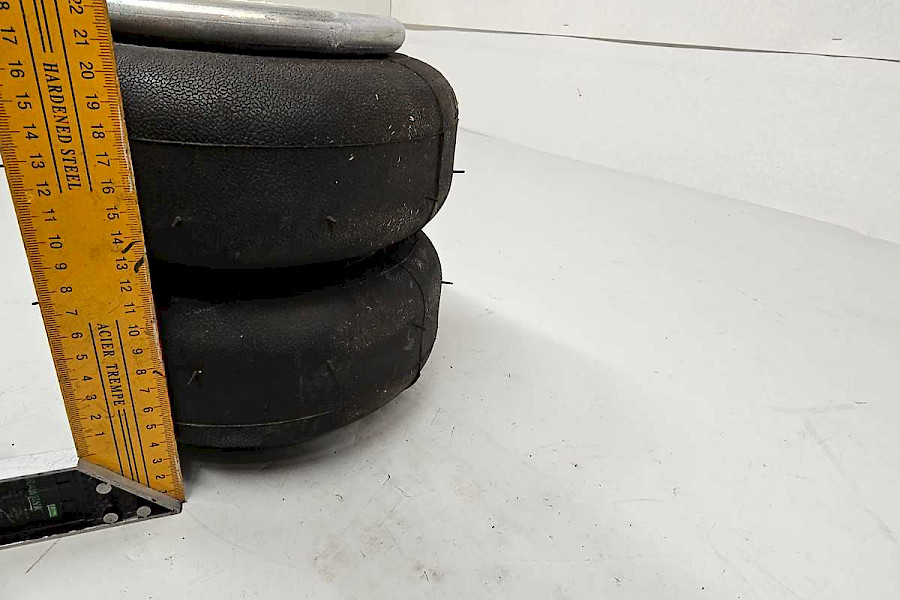

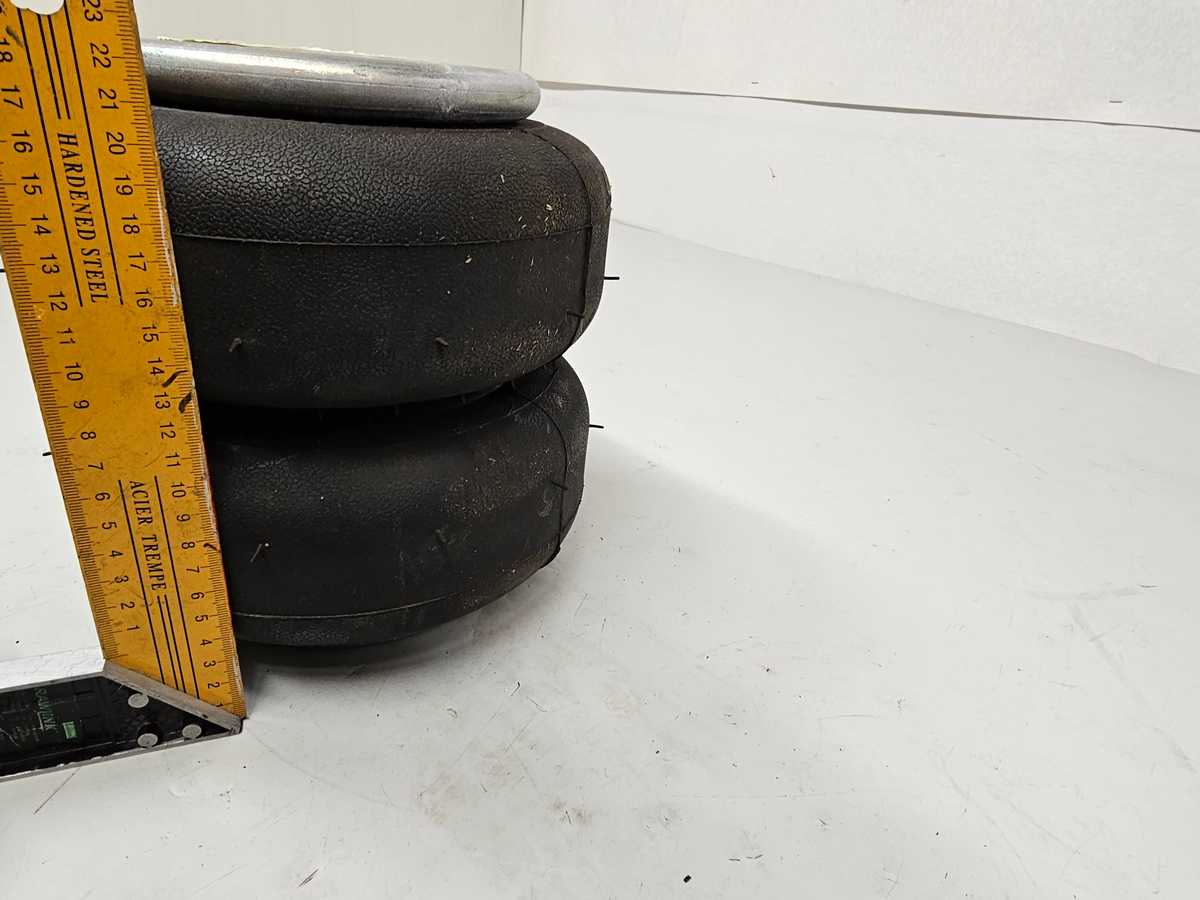

Maximum Height (mm)	76
Maximum Stroke (mm)	203
Minimum Usable Height (mm)	279
Force in kN @ 5 Bar at Stroke of 25 mm	16.1
Force in kN @ 5 Bar at Stroke of 50% of Max Stroke	12.4
Force in kN @ 5 Bar at Stroke of Maximum Stroke	8.9
Material	2-Ply Standard Cord
END CLOSURE DETAILS
Bead plate Type	3

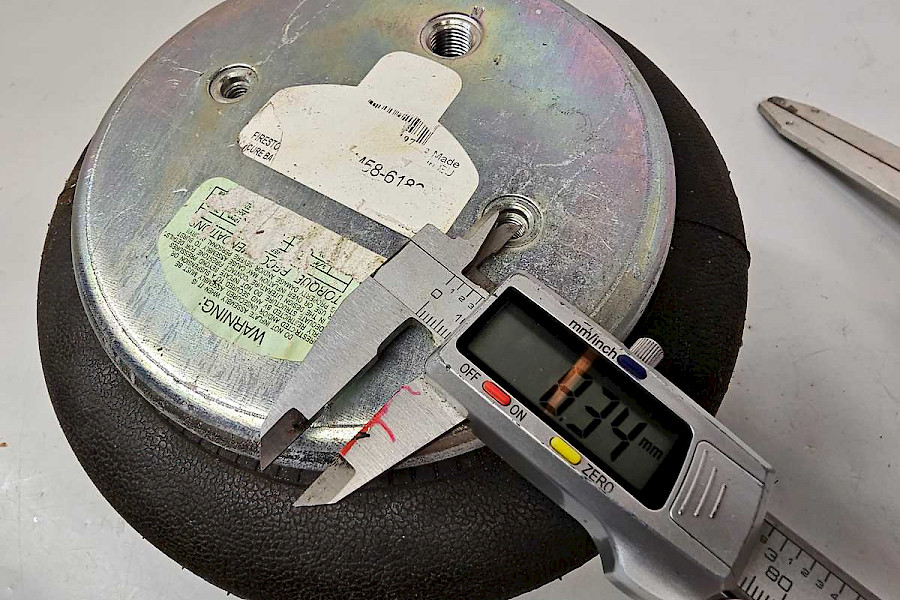

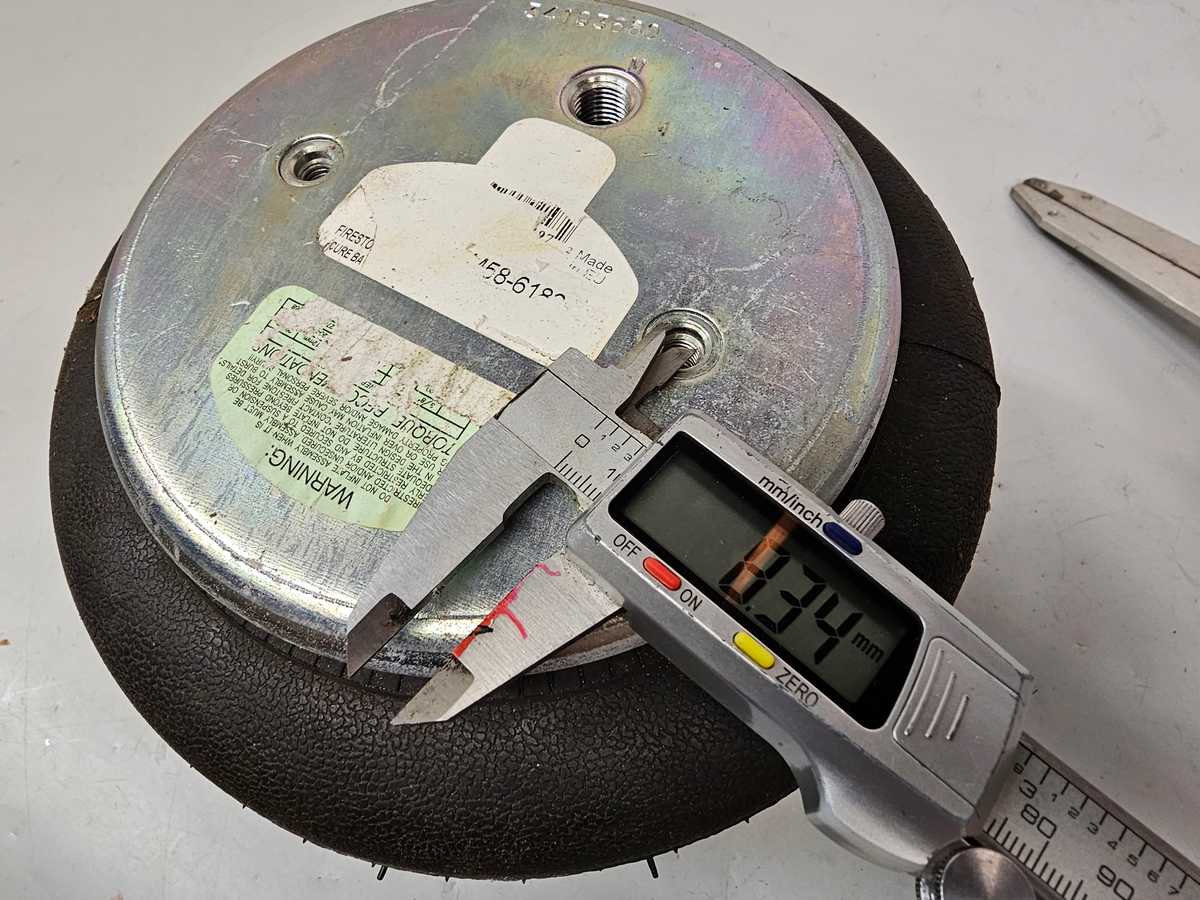

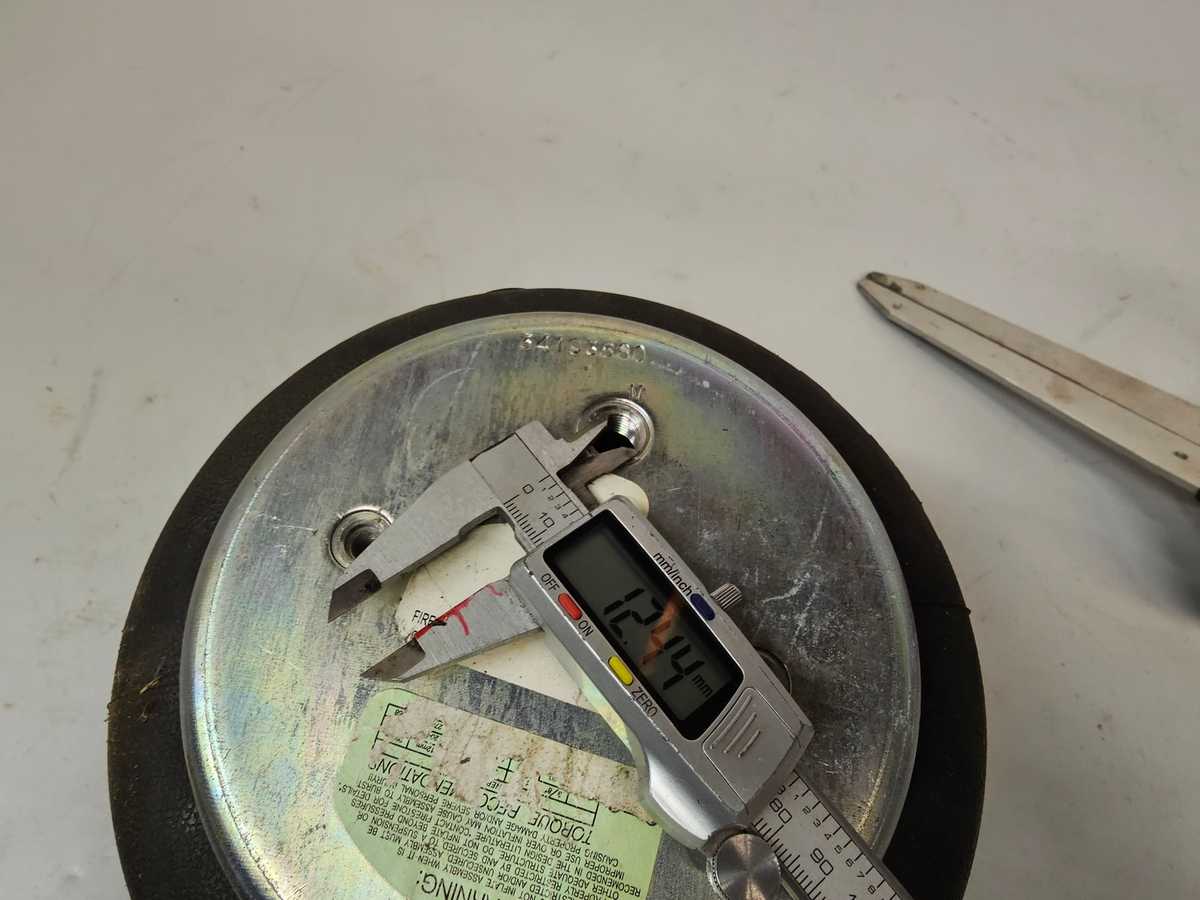

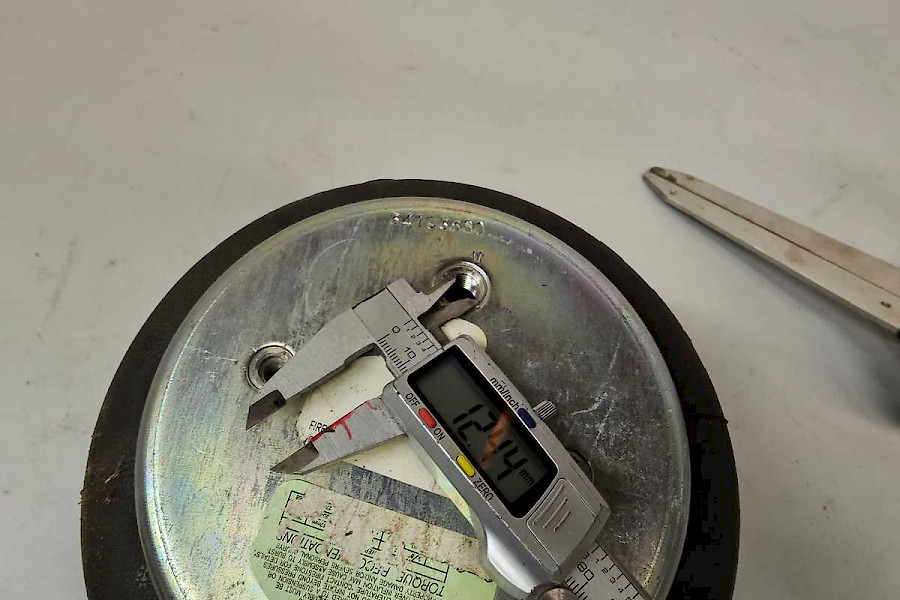

Dim. A (Blind Nut Centers) (mm)	89
Dim. B (mm)	73
AIRMOUNT ISOLATOR
Design Height (mm)	254
Load (at Design Height) at: 3 Bar (kN)	6.2
Load (at Design Height) at: 5 Bar (kN)	10.9
Load (at Design Height) at: 7 Bar (kN)	15.6
Natural Frequency (@5 Bar)(fn(Hz)	1.6
% of Isolation at Forced Frequency 7 Hz	93.9
% of Isolation at Forced Frequency 13 Hz	98.5
% of Isolation at Forced Frequency 25 Hz	99.6

tagit: Airide Air Spring | Double Convoluted | 20-2
