Air Torque Venttiilit
Sijainti
A0924Tuotetiedot

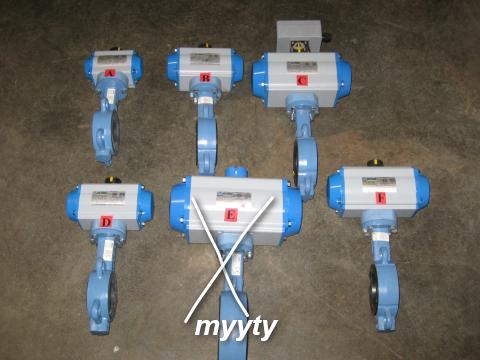

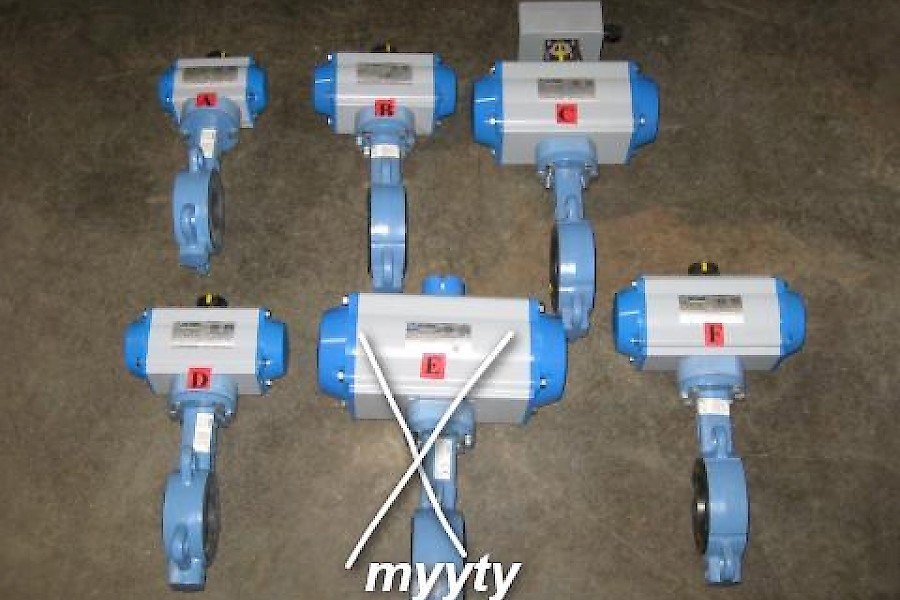

A: Valve Actuator attachment EN ISO 5211, Serial Nr. 040878149, Ancillary Attechment: AA 1, Pressure connection: B1, Max pressure 8 bar. Type and Model: Part turn AT101 T D B F05-N-D-14.Op. temperature -20C-+80C, Out put Torque at 5,5bar, max 32,2Nm.
B:Valve Actuator attachment EN ISO 5211, Serial Nr. 04148544, Ancillary Attechment: AA 1, Pressure connection: B1, Max pressure 8 bar. Type and Model: Part turn AT201D B F05/F07-N-D-17. Op. temperature -20C-+80C, Out put Torque, Max 64 Nm.
C:Valve Actuator attachment EN ISO 5211, Serial Nr. 06333448, Ancillary Attechment: AA 1, Pressure connection: B2, Max pressure 8bar. Type and model: Part turn AT301 S10 B F05/F07-N-D-17. Op. temperature -20C-+80C, Output Torque at 5bar, Max 82,3. Nm. min. 50,7Nm.
D: Valve Actuator attachment EN ISO 5211, Serial Nr. 04087593, Ancillary Attechment: AA 1, Pressure connection: B1, Max pressure 8bar, Type and model: Part turn AT201 S10 B F05/F07-N-D-17. Op. temperature -20C-+80C, Output Torque at 5bar, Max 36,1 Nm, min 22,1Nm.
F:Valve Actuator attachment EN ISO 5211, Serial Nr. 04087682, Ancillary Attechment: AA1, Pressure connection: B1, Max pressure 8bar, Type and Model: Part turn AT251 S10 B F05/F07-N-D-17, Op. temperature -20C-+80C, Output Torque at 5bar, Max 54,8 Nm, Min 36,7 Nm.
hinnat alakaien 50euro
